Integrated Splice Processor (LE-5100 Series LCD/LED)

Integrated Splice Processor (LE5100 Series LCD/LED)

5100 series splicing processor is a high-performance video image processing workstation with pure hardware architecture and no operating system. It adopts a large-capacity high-speed FPGA array and a processing mechanism CrossPoint digital multi-bus data routing and exchange, which ensures the complete time display of all signal images. At the same time, it has extremely high stability and fast startup speed, and supports 365x 24 hours of uninterrupted and stable operation.

Product Features

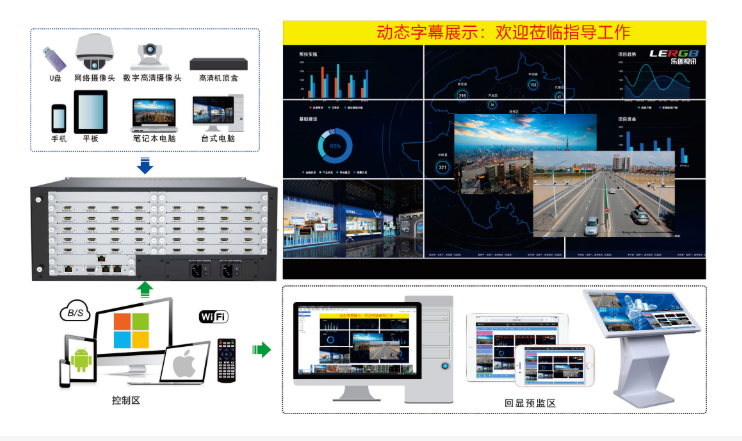

visual operation, real-time pre-monitoring echo

real-time smooth signal preview function, the pre-monitoring image can reach 60 frames/second of high-definition signal, supports hardware pre-monitoring, displays 16 different signal pre-monitoring at the same time, can reach 4K resolution, supports Windows client echo pre-monitoring, supports browser (mobile phone/tablet) echo pre-monitoring.

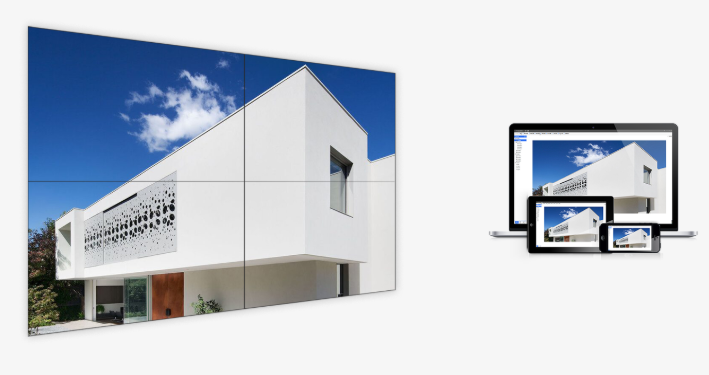

cross-platform web control

supports WEB control, custom logo, software name, automatic rotation function of equipment, cross-platform control of various operating systems such as Kirin, Hongmeng, Windows, IOS, Android, Linux, etc.

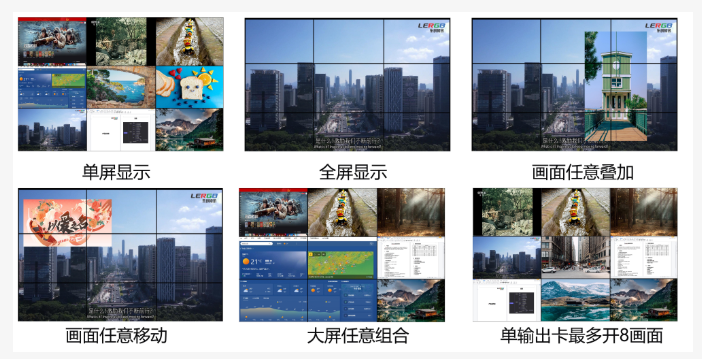

single screen sharing 8 windows

Flexible multi-layer display, single output card supports 8 2K layers and 2 4K layers; Single screen supports up to 8 2K layers

supports a variety of splicing methods arbitrary splicing display

supports no less than 4 groups of different resolution splicing screen, signal sharing between different groups of screens, convenient management

Network Camera Decoding

supports H.264 or H.265 decoding; Support ONVIF protocol and standard RTSP video stream; Support access by common security manufacturers; Support media service, thousands of network signals can be easily decoded and displayed.

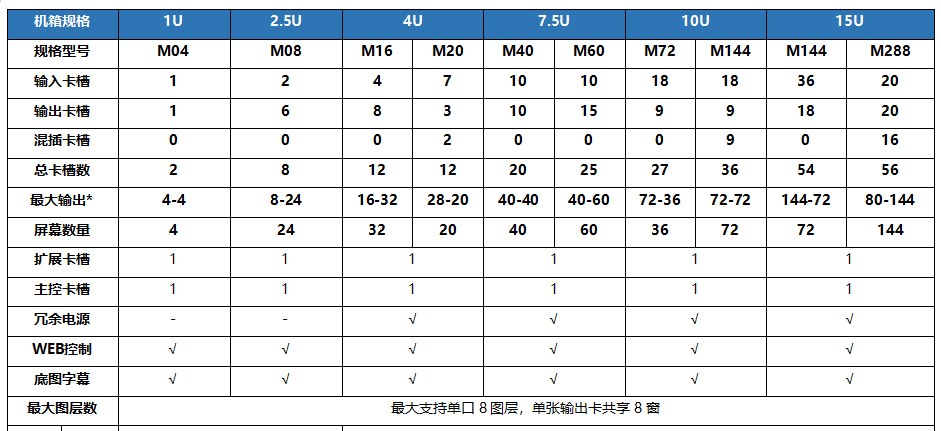

Product Specifications

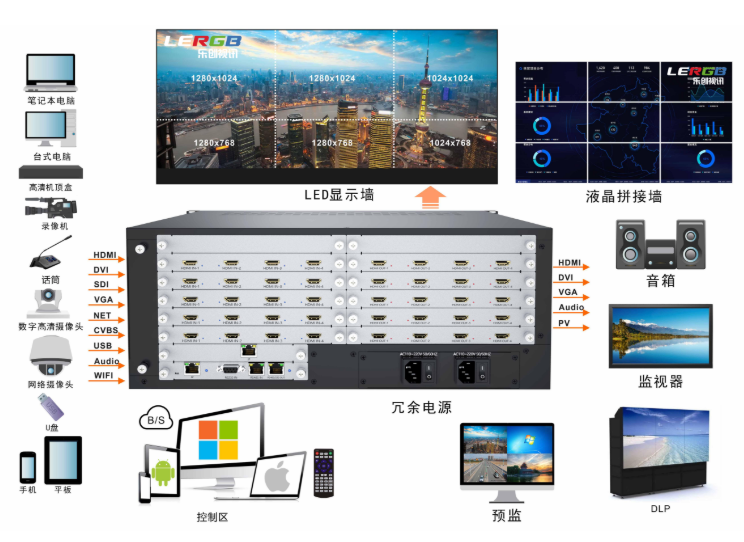

Product Expansion Chart
