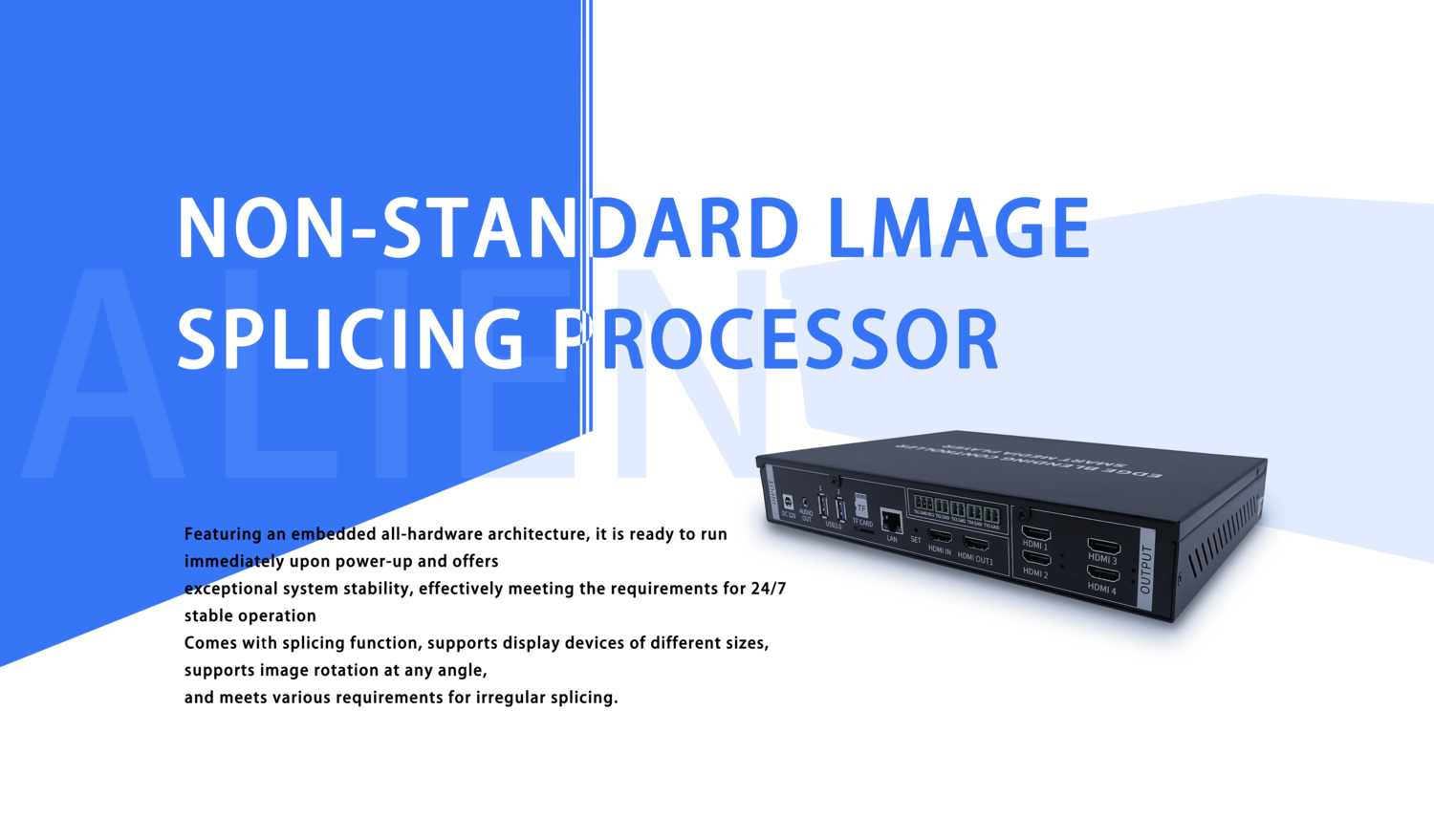

Spliced irregular-shaped playback processor (1800 series)

In the professional audiovisual field, traditional rectangular splicing can no longer meet the infinite demands of creative displays. Screens need to adapt to the unique curves and angles of stages, exhibition halls, and commercial spaces; the increasing diversity of signal sources places higher demands on the compatibility, stability, and intelligent control of processors.。
It is precisely to address these challenges,Lechuang Vision Irregular Splicing ProcessorIt was born out of necessity. It's not just a video processor, but a powerful, stable, and intelligent one.Core of the All-Scenario Display Solution。

4K ultra-high-definition capture, lossless audio and video synchronization

For high-quality sources, the processor supports external 4K high-definition HDMI video sources and enables simultaneous audio and video transmission. Whether the signal comes from a projector, player, or laptop, it can present excellent picture quality with low latency and no distortion, fully supporting 1920×1080@60Hz full HD resolution, ensuring that every frame is clear and smooth.

Full-format media support, unlocking content potential

The system deeply integrates multimedia processing capabilities, supporting playback and processing of all media file formats, including images, videos, and audio. Users can flexibly perform professional-level operations such as "windowing, roaming, and overlaying," achieving multi-layered overlay effects through free window layout and smooth roaming interaction, providing unlimited creative space for live performances.
Not only audio and video, but the processor is also widely compatible.Word、PPTOffice documents, and supportsPPT page turning operationsThis greatly simplifies the operation process in scenarios such as meetings and presentations. Built-in...Real-time clockandWeather forecastThe functional modules further extend the value of the information display screen.

Intelligent contingency plans, one-click scene switching

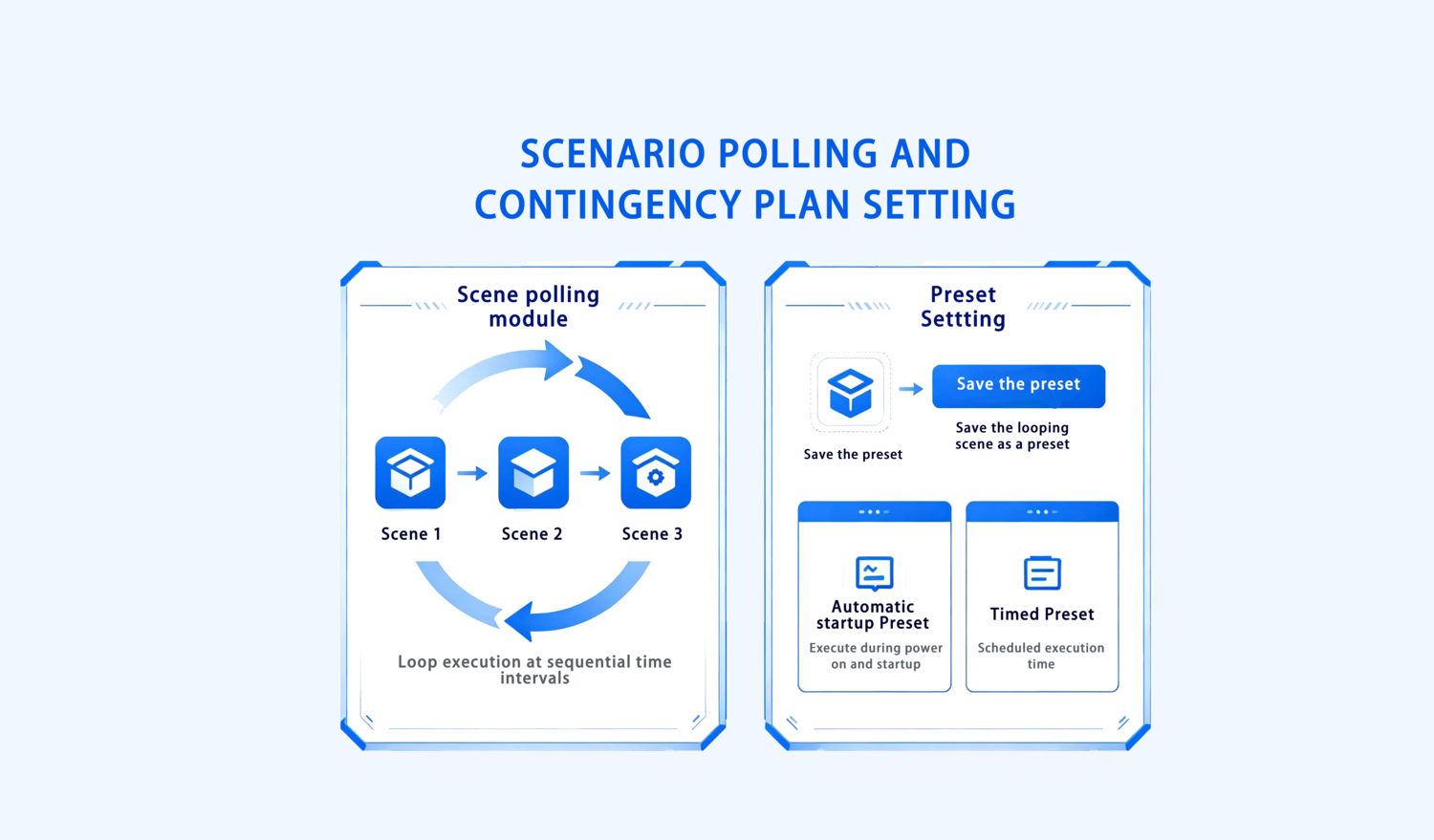

To address complex, multi-scenario applications, the processor is equipped with powerful scenario polling and contingency planning capabilities:

• Users can save frequently used display layouts as presets, supporting quick saving and recall of multiple scenarios.

• The system can perform scenario polling in a sequential and time-interval manner according to the settings.

• It supports automatic startup plans and timed plans, which can automatically load preset scenarios when the device is powered on, or automatically execute tasks at a predetermined time, truly achieving unattended intelligent management and control.

Topology visualization puts the system under your control.

To make system integration and maintenance more intuitive, the processor provides a topology visualization interface. Through the graphical topology diagram, users can clearly understand the connection relationships and control links of all devices, from the irregularly shaped splicing processor to the audio system, display screen, central control system, lighting, curtains, and so on.
In terms of control methods, the processor is also flexible and diverse, supporting both traditional and advanced technologies.Keyboard, remote controlOperations are also supported via...mobile phones, PCs, tabletsWireless control and seamless access are also possible.Central control systemTo achieveLighting, curtainsCentralized control of the surrounding environment. ThroughHDMI cable, network cableor connectionEMMC memory card, USB flash driveLocal media can be easily connected from...Computer, DVD, webcam streamingIt has numerous signal sources to meet the most complex system integration requirements.

From creative displays to stable operation, from multi-source acquisition to intelligent control, Lechuang Vision's irregular-shaped splicing processor provides a solid and reliable core engine for the professional audiovisual field with its superior performance and high flexibility. Whether used for stage rental, high-end conferences, exhibitions, or digital signage, it will be a partner you can trust.
