4K HDMI Matrix Switcher | Series 7100

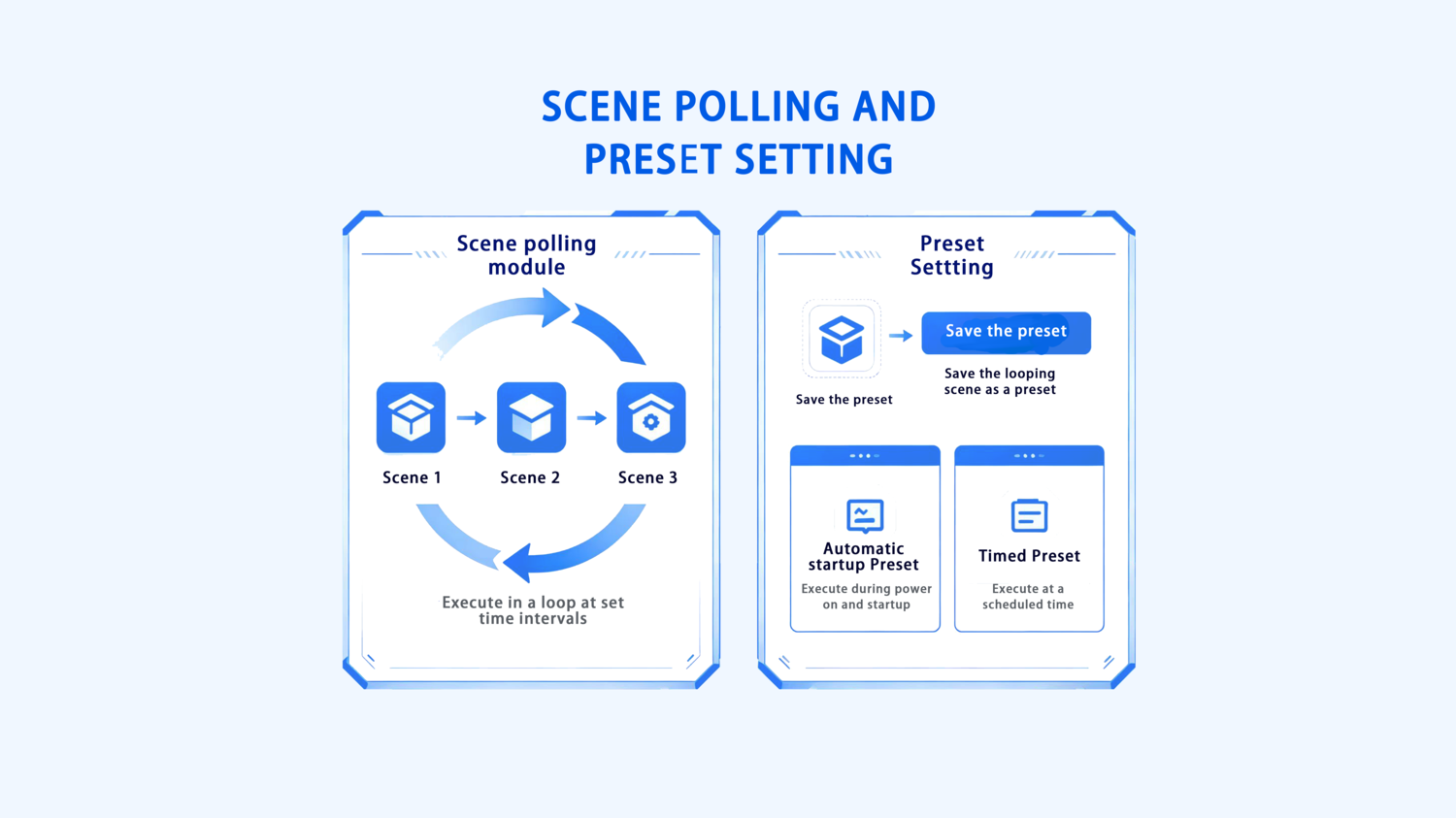

The device supports powerful scene management functions, making the management of complex scenes involving multiple signals and multiple terminals simple and efficient:

• Scene polling: Multiple preset scenes can be executed automatically in sequence at set time intervals, which is suitable for scenes such as exhibition halls and exhibition halls that require automatic content switching.

• Contingency plan settings: Supports saving frequently used signal routing configurations as contingency plans, which can be recalled with one click. It also supports "automatic contingency plan upon power-on" and "timed contingency plan" to meet automated management needs.

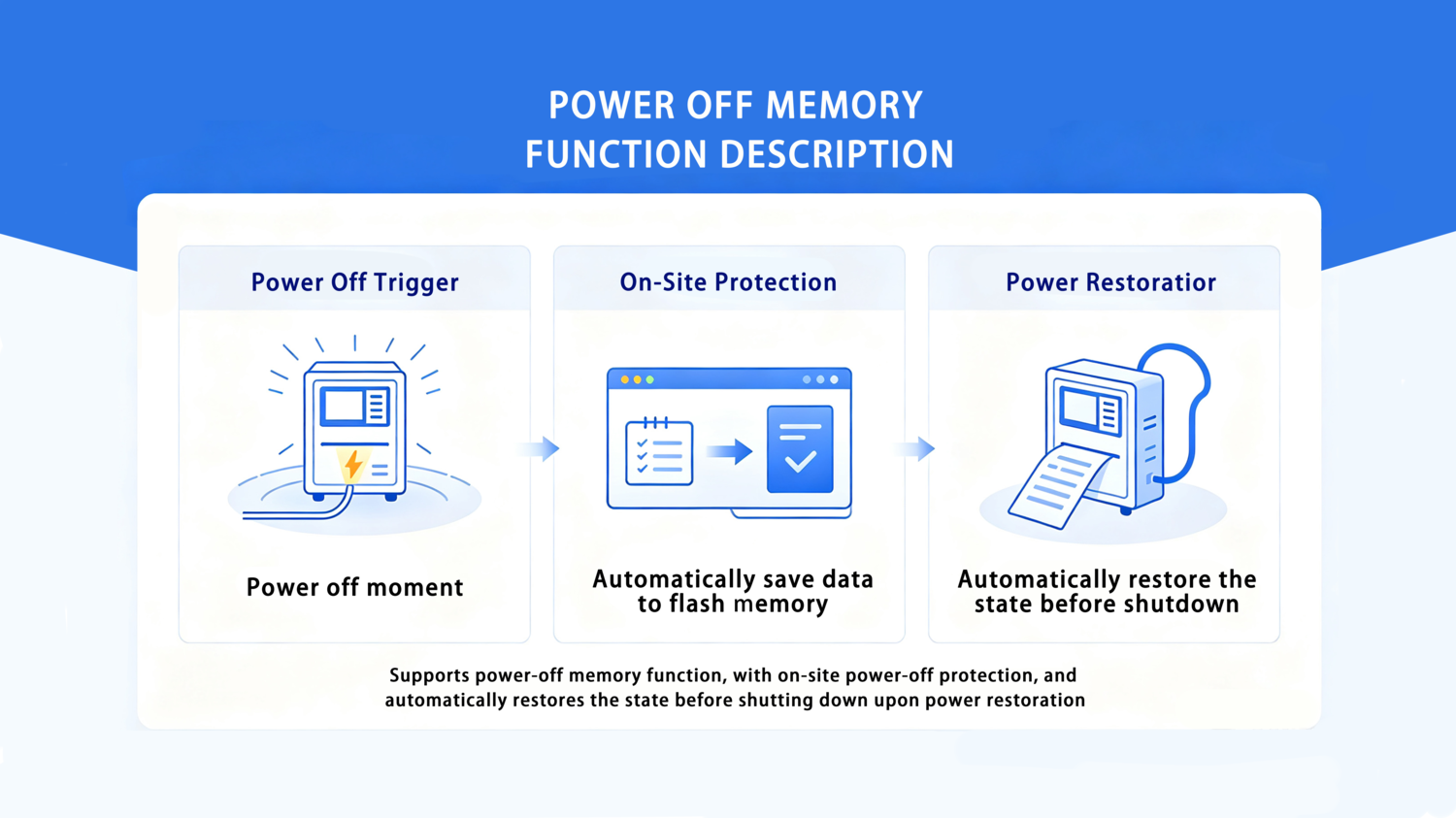

A power failure memory protection mechanism is specifically designed for professional scenarios involving long-term operation:
Power failure trigger: The built-in protection module responds immediately when the device is powered off.
Field protection: The device automatically saves all current configuration data (such as signal routing and scene modes) to flash memory.
Power restoration: After power is restored, the device will automatically read the saved configuration and restore the working state before shutdown with one click, without the need for manual reset, ensuring stable operation of the project 24/7.

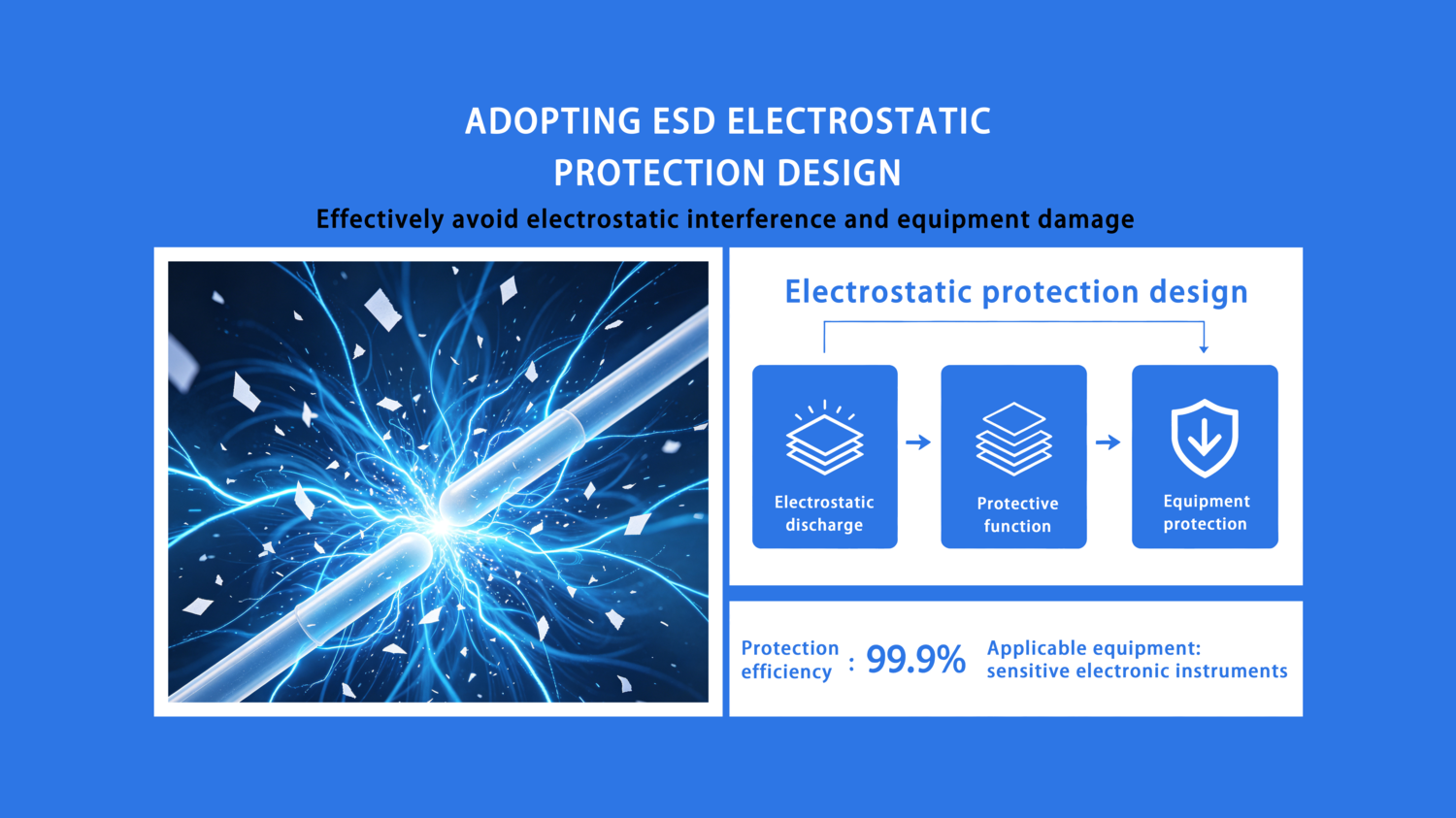

To cope with the complex electromagnetic environments of computer rooms, command centers, and other similar locations, the equipment adopts a professional ESD (electrostatic discharge) protection design:

• It has a built-in multi-layer electrostatic protection module with a protection efficiency of up to 99.9%.

• It can effectively prevent electrostatic interference from impacting and damaging the internal circuitry of the equipment, providing comprehensive protection for the matrix host and extending the service life of the equipment.

To handle complex high-definition playback scenarios, the device has built-in powerful signal compatibility processing capabilities:

• HDCP Decryption: Supports decryption of HDCP-protected digital content, ensuring that signals from devices such as Blu-ray players and set-top boxes can be output normally to all display terminals.

• Blu-ray signal compatibility: Perfectly compatible with Blu-ray playback devices, enabling uncompressed and smooth high-definition Blu-ray signal transmission.

• 3D format support: Compatible with mainstream 3D video formats, meeting the needs of immersive display and 3D projection projects.

This matrix switcher features a visual system topology design, making the connection logic of the entire audio-visual system clear at a glance:

• Input signal sources: devices such as laptops, desktop computers, media players, and cameras, connected to the matrix host via HDMI interface.

• Signal processing center: The matrix host is responsible for the routing and distribution of all signals.

• Multiple control methods: Supports RS-232 serial port control, USB to DB9 local control, and remote control via router/switch via mobile phone, tablet, or PC web interface.

• Output terminal equipment: The signal can be distributed to monitors, projectors, LCD video walls, etc., and supports video wall control and large screen linkage.
