In professional audio - visual integration, commercial digital signage, and multimedia presentations, the core requirement is to stably expand a single signal source to multiple display terminals.1200 Series DistributorsDesigned specifically for high - performance signal distribution.
I.Shocking Visuals: Fully support 3D video formats
Vision should not be limited by the screen. The 1200 series distributors perfectly support 3D video formats. Through advanced signal processing technology, stereoscopic images can be presented synchronously on multiple display terminals. Whether it's a cinema presentation or an immersive commercial display, it can bring the audience a visual impact that seems to leap off the screen.
II.Stable Core: 3.4Gbps high - speed bandwidth and 340MHz clock
In multi - channel signal distribution, stability is the top priority. Our product supports a maximum transmission rate of 3.4Gbps, and the TMDS clock frequency is as high as 340MHz.
Stable Output: Built - in high - performance processing chip effectively filters signal noise, ensuring no flickering or frame dropping in the picture during long - term operation.
Pure Signal: Even in a complex electromagnetic environment, it can still maintain the integrity of the signal waveform.
III.Extreme Picture Quality: HDMI 1.4b version and 4K high - definition
Keep up with the ultra - high - definition era. The 1200 series is fully compatible with the HDMI 1.4b protocol.
4K Resolution: Supports a resolution of up to 3840x2160/30Hz, with a pixel density 4 times that of ordinary 1080P.
Deep - color Technology: Supports 8/10/12 - bit deep color, making the color transition as smooth as silk and truly restoring every shade of color.

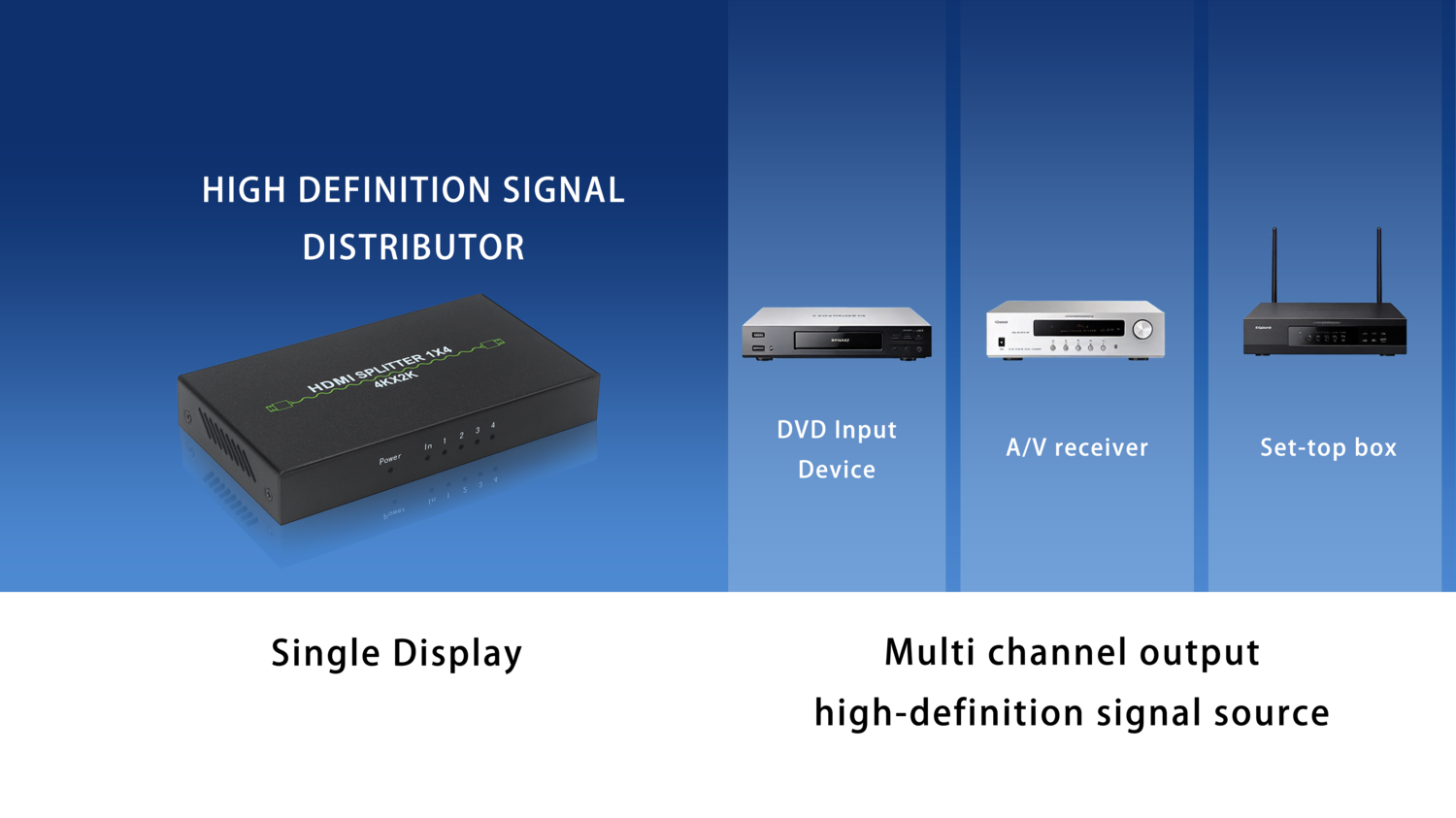

IV.Flexible Distribution: Multi - channel expansion of a single display source
Easily achieve one - stop connection. Through the 1200 series (such as H104, etc.), you can expand a single high - definition signal source to 2, 4, 8, or even 16 display terminals.
Wide Compatibility: Supports various mainstream high - definition devices such as DVD players, A/V receivers, and set - top boxes.
Fully Synchronized Display: The pictures on each display are completely synchronized, making it an ideal solution for monitoring centers, mall guides, and multimedia teaching.

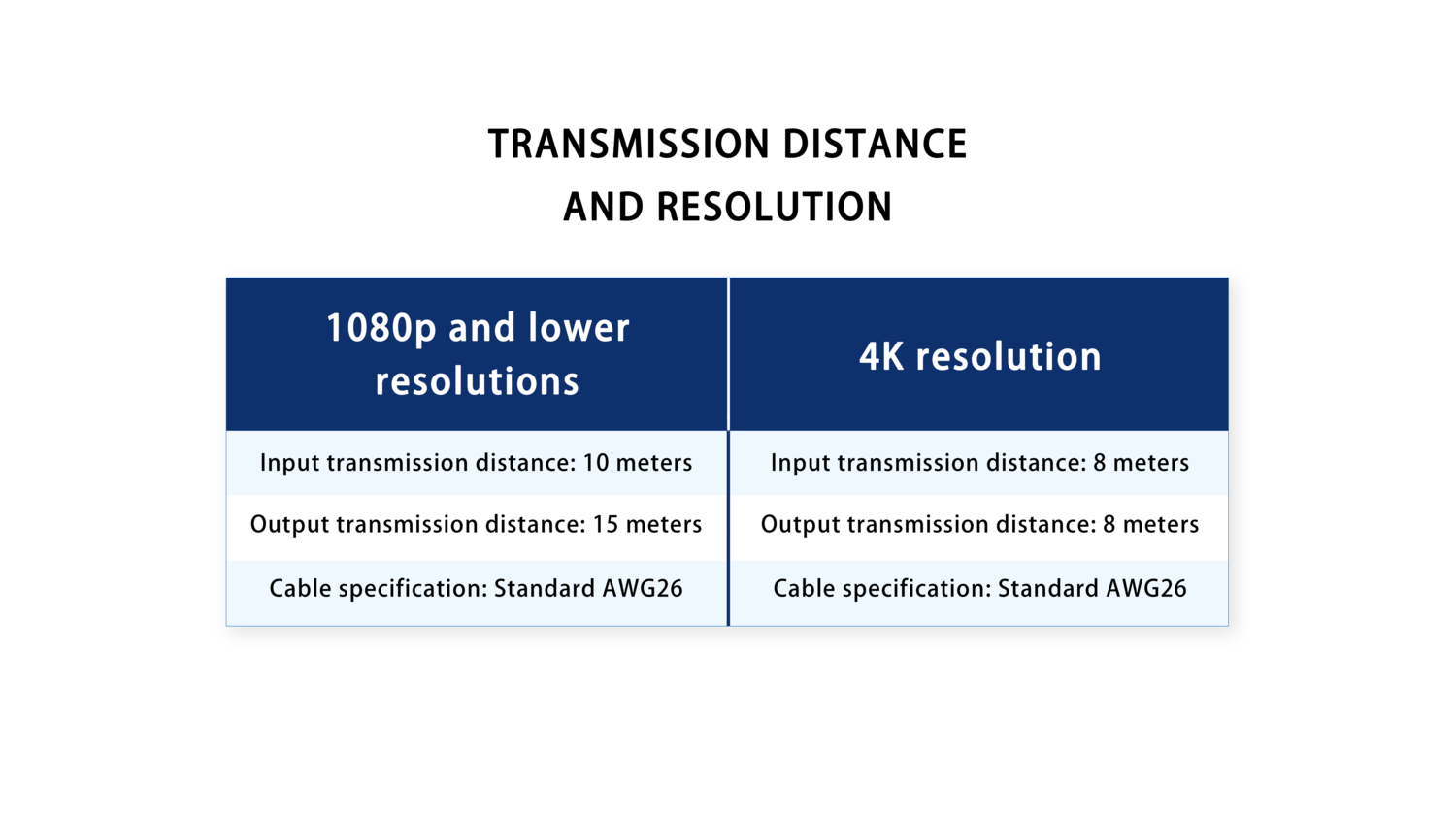

V.Engineering Assurance: The best balance between transmission distance and resolution
For actual wiring scenarios, we provide clear engineering parameter guidance. Using standard AWG26 cables, you can achieve:
1080P Solution: The input can reach up to 10 meters, and the output can reach up to 15 meters, covering medium - and large - sized meeting rooms.
4K Ultra - clear Solution: Both input and output can stably support 8 meters, ensuring the lossless arrival of ultra - high - definition signals.
